Sheet metal guillotine shears

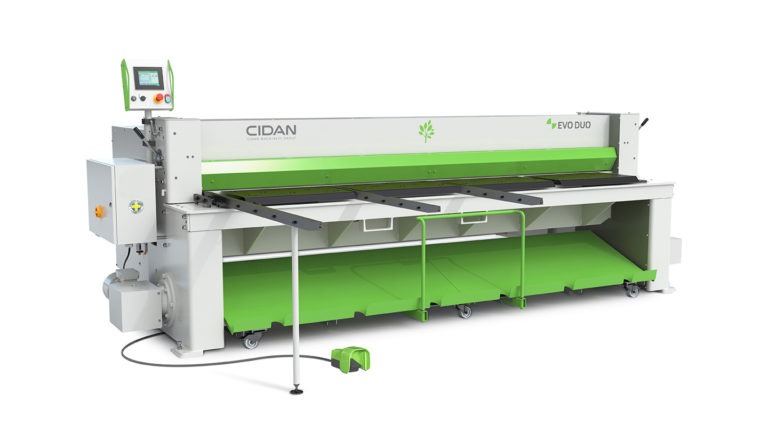

CIDAN EVO
Sheet metal guillotine shear
The EVO sheet metal guillotine shear is the strongest of CIDAN line of mechanical guillotine shears providing low-noise gear motor, single or continuous stroke control, double edged blades, and finger protection.
EVO DUO 32
- Working length: 3200 mm
- Steel (max sheet thickness): 4.0 mm
- Stainless steel (max sheet thickness): 2.25 mm
- Aluminum (max sheet thickness): 5.5 mm
- Speed: 28 cuts/min
EVO DUO 41
- Working length: 4100 mm
- Steel (max sheet thickness): 2.5 mm
- Stainless steel (max sheet thickness): 1.6 mm
- Aluminum (max sheet thickness): 3.7 mm
- Speed: 28 cuts/min
CIDAN RAPIDO
Sheet metal guillotine shear
The CIDAN RAPIDO is an electrical sheet metal guillotine shear that works fully independent of oil or hydraulics and offers manual use of the hand wheel system, drive system with eccentrics and pull-down rod, and standard squaring arm and table extension for multiple sheets.
RAPIDO 13
- Working length: 1350 mm
- Steel (max sheet thickness): 3.5 mm
- Stainless steel (max sheet thickness): 2.0 mm
- Aluminum (max sheet thickness): 5.0 mm
- Speed: 35 cuts/min
RAPIDO 26
- Working length: 2600 mm
- Steel (max sheet thickness): 2.5 mm
- Stainless steel (max sheet thickness): 1.6 mm
- Aluminum (max sheet thickness): 3.7 mm
- Speed: 35 cuts/min
RAPIDO 32
- Working length: 3200 mm
- Steel (max sheet thickness): 2.5 mm
- Stainless steel (max sheet thickness): 1.6 mm
- Aluminum (max sheet thickness): 3.7 mm
- Speed: 35 cuts/min
RAPIDO 41
- Working length: 4100 mm
- Steel (max sheet thickness): 1.5 mm
- Stainless steel (max sheet thickness): 0.6 mm
- Aluminum (max sheet thickness): 2.2 mm
- Speed: 35 cuts/min
LVD CS
Hydraulic guillotine shear
Information will be available soon…
LVD MVS
Hydraulic guillotine shear
Information will be available soon…
MVS 06/31
- Working length: 3100 mm
- Max capacity (steel): 6,35 mm
MVS 06/40
- Working length: 4050 mm
- Max capacity (steel): 6,35 mm
MVS 06/62
- Working length: 6200 mm
- Max capacity (steel): 6,35 mm
MVS 13/31
- Working length: 3100 mm
- Max capacity (steel): 13 mm
MVS 13/40
- Working length: 4050 mm
- Max capacity (steel): 13 mm
MVS 13/62
- Working length: 6200 mm
- Max capacity (steel): 13 mm
LVD HGS
Hydraulic guillotine shear
Information will be available soon…
HGS
- Working length: from 3100 to 12000 mm
- Max capacity (steel): from 10 to 30 mm
