Straight, Slit & Cut to length

FORSTNER is manufacturer of slit and cut to length machines since 1960.

The table below provides information of main functions of different equipment, so  You can easily find the right machine for your company.

table

EASY/SLIT

Forstner
SLIT and CUT to length machine FORSTNER

Forstner

  • Function: cut to length
  • Working width: 1250 mm
  • Speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: roller shear
  • Functions: slit, cut to length
  • Working width: 1250 mm
  • Speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: roller shear
  • Slitting knives: 5 as standard (max. 8)
  • Slitting shaft diameter: 100 mm
  • Min. slitting width: 60 mm
  • Slitting function ON/OFF: manual
  • Slitting width regulation: manual
  • Functions: slit, cut to length
  • Working width: 1250 mm
  • Speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: guillotine shear
  • Slitting knives: 5 as standard (max. 8)
  • Slitting shaft diameter: 100 mm
  • Min. slitting width: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual

COMPACT

Forstner
Slit and cut to length machine FORSTNER COMPACT

Forstner

  • Functions: Straight, slit, cut to length
  • Working width: 1250 mm
  • Shearing capacity: 1,0 mm
  • Shear type: roller shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: manual
  • Slitting shaft diameter: 100 mm
  • Slitting knives: 5 as standard (max. 8)
  • Min. width slitting: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual
  • Functions: Straight, slit, cut to length
  • Working width: 1250 mm
  • Shearing capacity: 1,0 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: manual
  • Slitting shaft diameter: 100 mm
  • Slitting knives: 5 as standard (max. 8)
  • Min. width slitting: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual
  • Functions: Straight, slit, cut to length
  • Working width: 1250 mm
  • Shearing capacity: 1,0 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: manual
  • Slitting shaft diameter: 100 mm
  • Slitting knives: 5 as standard (max. 8)
  • Min. width slitting: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual
  • Supplied with folding table for an easier setting of the slitting knives

NUSLIT

Forstner
Straightenint, Sliting and cut to length machine FORSTNER NUSLIT

Forstner

  • Functions: slit, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: guillotine shear
  • Slitting shaft diameter: 106 mm
  • Slitting knives: 5 as standard (max. 7)
  • Min. width slitting: 80 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: motorized
  • Functions: slit, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: sectional roller shear
  • Slitting shaft diameter: 106 mm
  • Slitting knives: 5 as standard (max. 7)
  • Min. width slitting: 80 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: motorized
  • Functions: straight, slit, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: motorized
  • Slitting shaft diameter: 106 mm
  • Slitting knives: 5 as standard (max. 7)
  • Min. width slitting: 80 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: motorized
  • Functions: straight, slit, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: sectional roller shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: motorized
  • Slitting shaft diameter: 106 mm
  • Slitting knives: 5 as standard (max. 7)
  • Min. width slitting: 80 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: motorized

STRAIGHT

Forstner

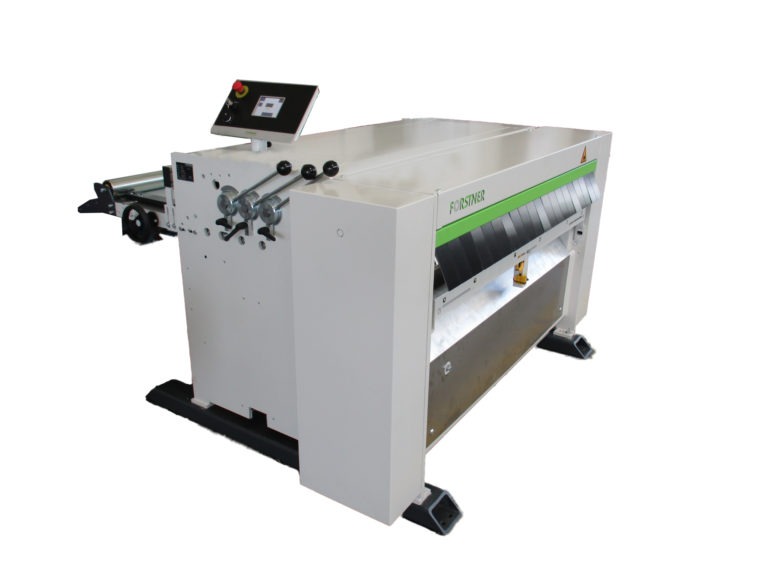

Straightening and cut to length machine FORSTNER STRAIGHT

Forstner

  • Functions: straight, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,0 mm
  • Shear type: roller shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: manual
  • Functions: straight, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,5 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 70 mm
  • Straightening settings regulation: manual
  • Functions: straight, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 2,0 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 110 mm
  • Straightening settings regulation: motorized
  • Functions: straight, cut to length
  • Working width: 1500 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,8 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 110 mm
  • Straightening settings regulation: motorized

POWER COMPACT

Forstner
FORSTNER POWER COMPACT

Forstner

  • Functions: straight, slit, cut to length
  • Working width: 1250 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 2,0 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 110 mm
  • Straightening settings regulation: motorized
  • Slitting shaft diameter: 140 mm
  • Slitting knives: 5 as standard (max. 8)
  • Min. width slitting: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual
  • Supplied with folding table for an easier setting of the slitting knives
  • Functions: straight, slit, cut to length
  • Working width: 1500 mm
  • Max. speed: 25 m/min
  • Shearing capacity: 1,75 mm
  • Shear type: guillotine shear
  • Straightening rolls diameter: 110 mm
  • Straightening settings regulation: motorized
  • Slitting shaft diameter: 140 mm
  • Slitting knives: 5 as standard (max. 8)
  • Min. width slitting: 60 mm
  • Slitting function ON/OFF: motorized
  • Slitting width regulation: manual
  • Supplied with folding table for an easier setting of the slitting knives
