Long Belt Sander HOUFEK BASSET PBH250 / #323

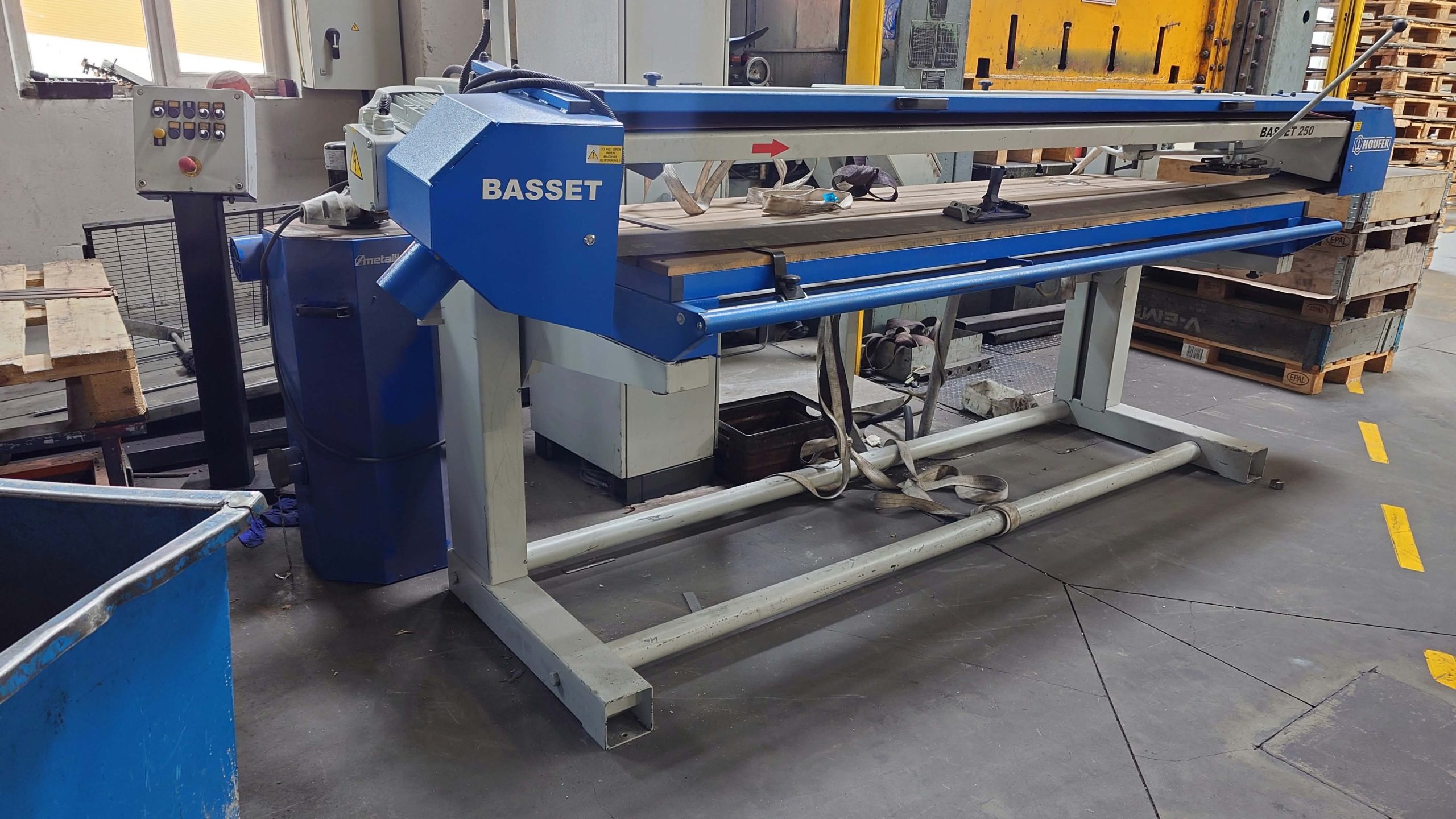

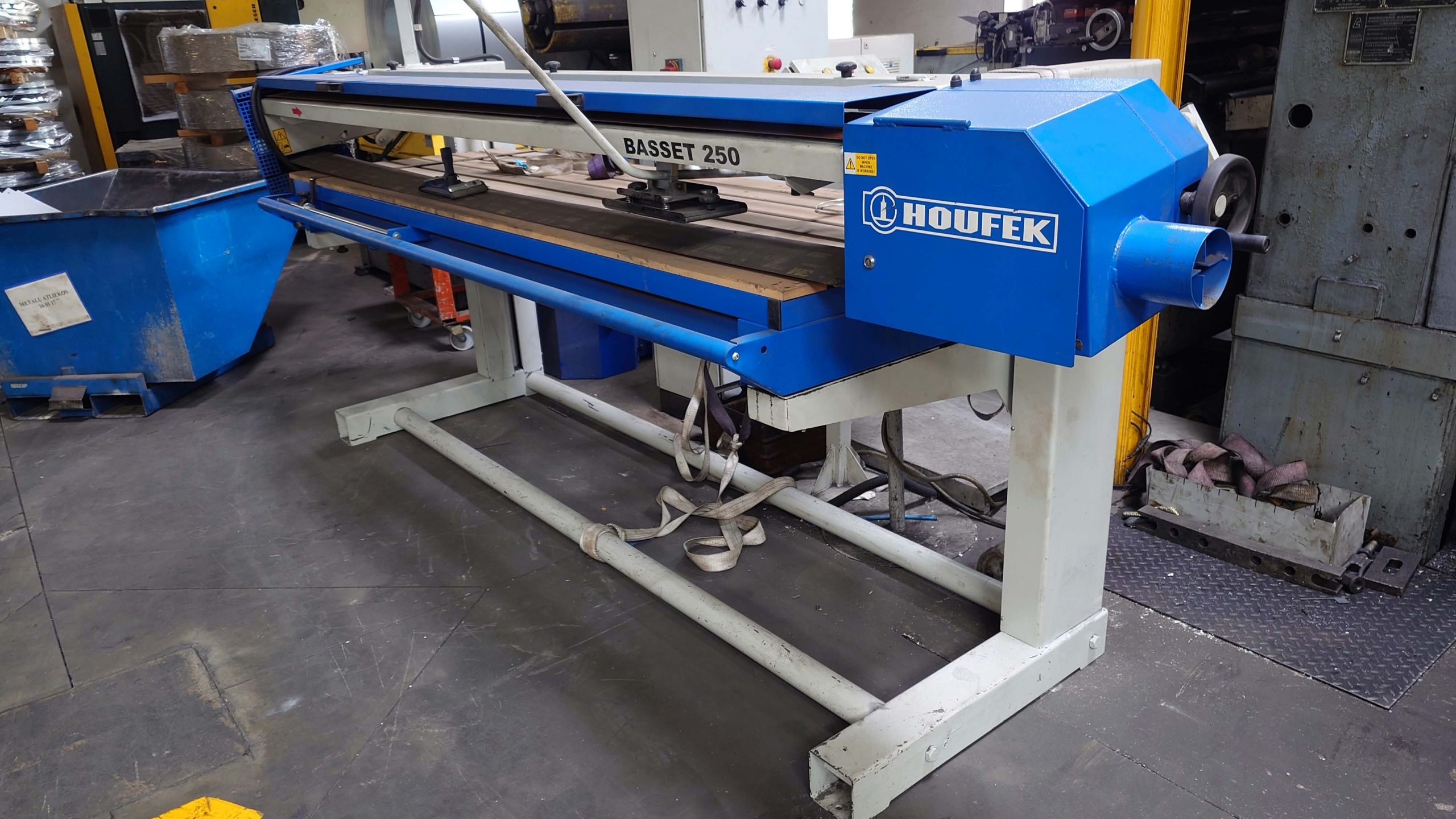

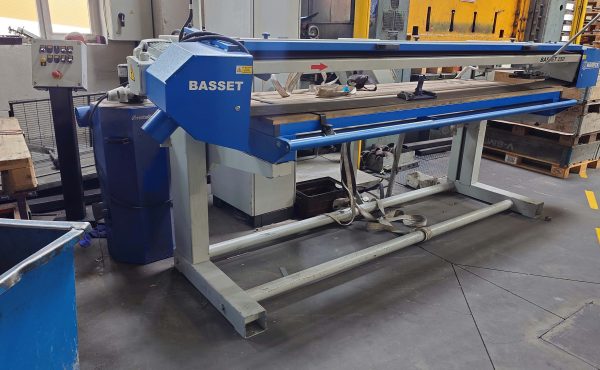

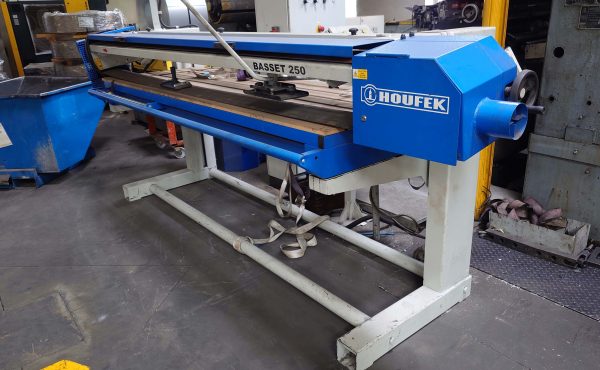

For sale is a HOUFEK BASSET PBH250 long belt sanding machine, manufactured in 2020 in the Czech Republic.

Heavy-duty industrial machine with a large 800 × 2500 mm worktable, designed for sanding, levelling and finishing larger workpieces and surfaces.

The long 150 × 7000 mm sanding belt and adjustable worktable allow convenient processing of both individual parts and larger workpieces. The sanding unit can be tilted up to 90°, allowing the machine to also be used for edge sanding.

Main Information

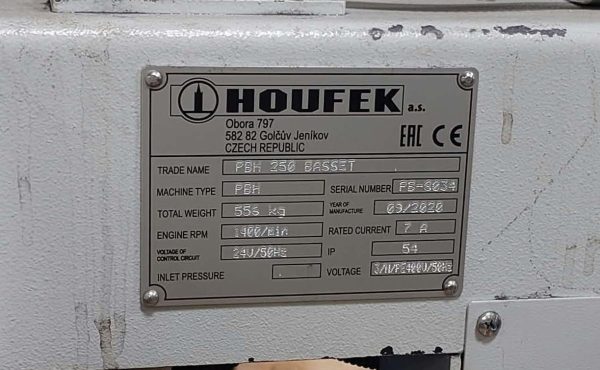

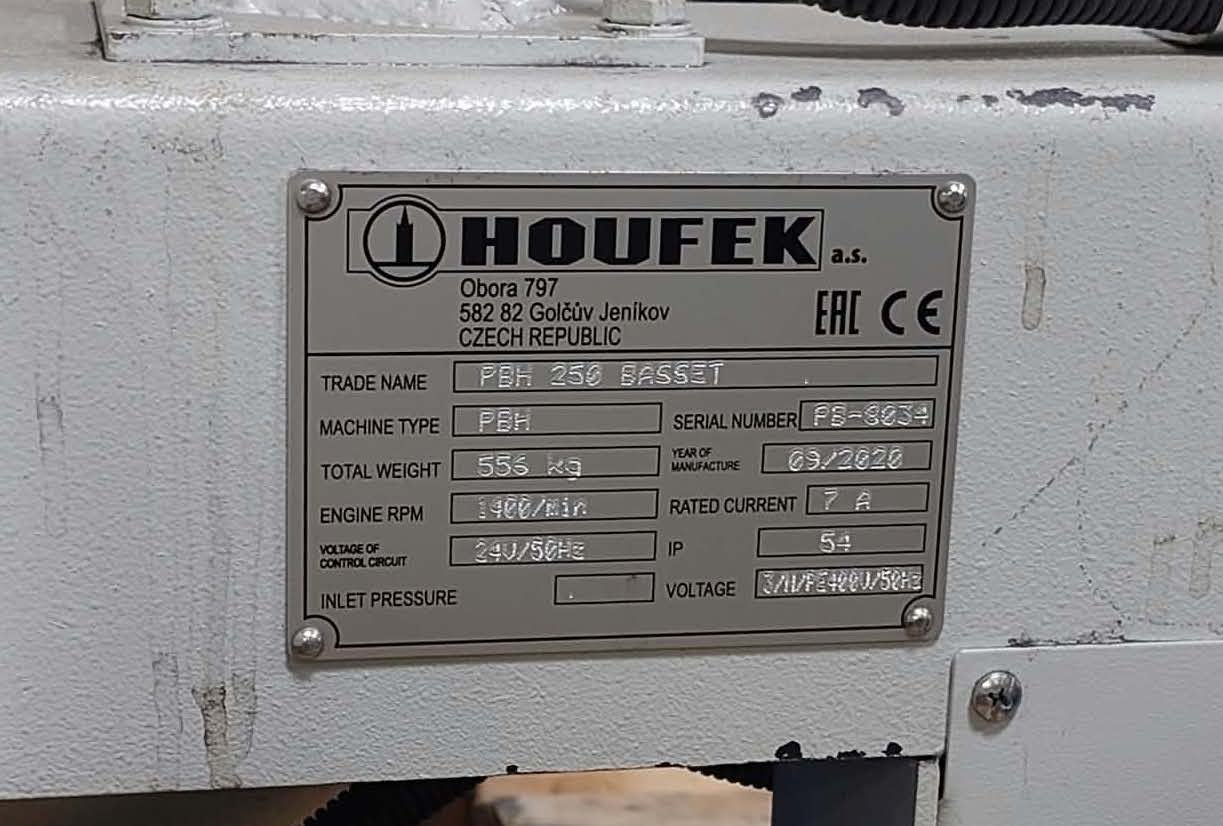

Manufacturer: HOUFEK a.s.
Model: BASSET PBH250
Year of manufacture: 2020
Made in: Czech Republic
Serial No.: PB-3604

Technical Specification

Motor power: 3 kW
Motor speed: 1400 rpm
Sanding belt speed: 17 m/s
Sanding belt dimensions: 150 × 7000 mm
Worktable dimensions: 800 × 2500 mm
Vertical table travel: 540 mm
Horizontal table travel: 700 mm
Max. workpiece weight: 100 kg
Sanding unit tilting: up to 90°
Dust extraction connections: 2 × Ø100 mm
Power supply: 3/N/PE 400 V / 50 Hz
Rated current: 7 A
Protection class: IP54
Machine weight: 556 kg

Main Advantages

• Large 800 × 2500 mm adjustable worktable
• Long 150 × 7000 mm sanding belt
• Sanding belt speed of 17 m/s
• 540 mm vertical and 700 mm horizontal table travel
• Sanding unit tiltable up to 90°
• Robust industrial construction
• Dust extraction from both sides of the machine
• CE marking

If you have any questions, we will be happy to answer.
