Professional hydraulic CNC press brake LVD PPEC-7 135/30 for sale.
High-class press brake manufactured in Belgium, known for its precision, reliability and servo-hydraulic control system.
The machine is fully operational. Full technical service completed – oils and filters replaced.
Available for inspection and testing in our warehouse in Vilnius.
General Information

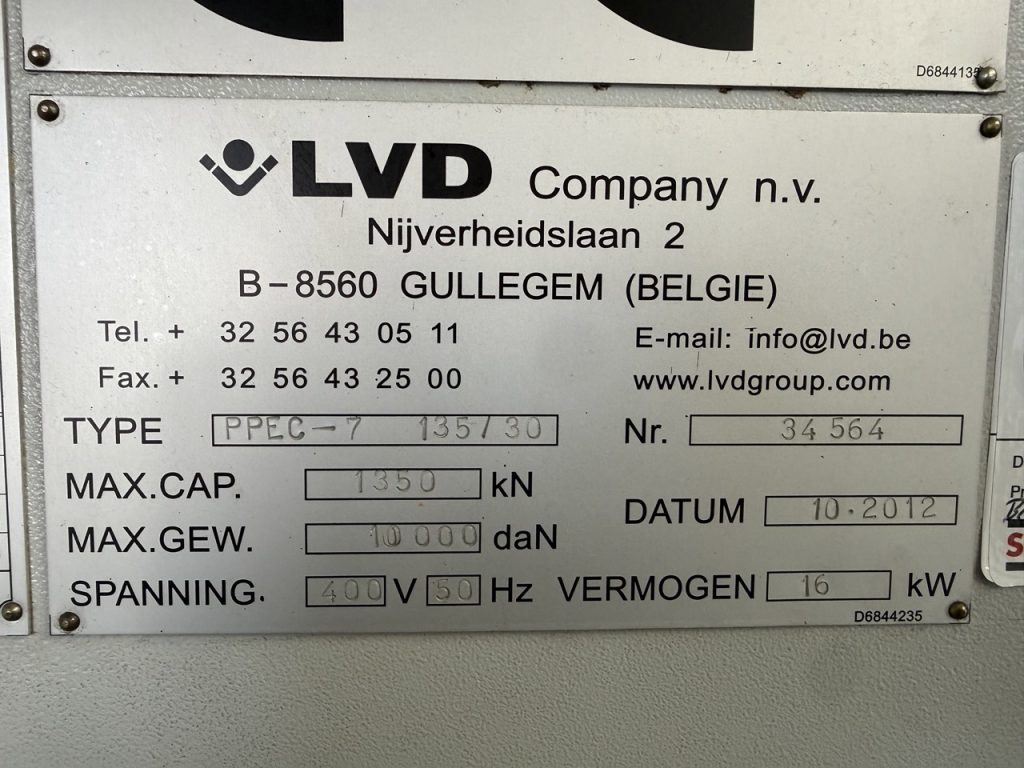

Manufacturer: LVD
Model: PPEC-7 135/30
Year of manufacture: 2012.10
Bending force: 135 T (1350 kN)
Working length: 3050 mm
Technical Parameters
Distance between uprights: 2600 mm
Stroke: 200 mm
Distance table to ram: 500 mm
Throat depth: 400 mm
Approach speed: 100 mm/s
Working speed: 11 mm/s
Return speed: 100 mm/s
Motor power: 11 kW
Oil capacity: 275 L
Weight: ~10,000 kg
Equipment & Configuration
Controller: Cadman Lite (2D graphical programming, Quick Bend, collision control)
Table: Automatic crowning system (V-axis)
Upper tool clamping: Wila hydraulic system
Backgauge: X, X’, R, Z1, Z2
Backgauge fingers: 2 pcs (3 measuring positions, up to 1000 mm gauging)
Laser safety system: CE – Lasersafe
2 front support arms: PP1115
Structural Advantages
• Welded one-piece frame
• Servo-hydraulic system with Y1–Y2 encoders (0.01 mm accuracy)
• Precise and stable bending geometry
• Suitable for serial and precision production
If you have any questions, feel free to contact us.
